JACKS AND PLUGS
STRAIGHT MINIATURE POWER JACKS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

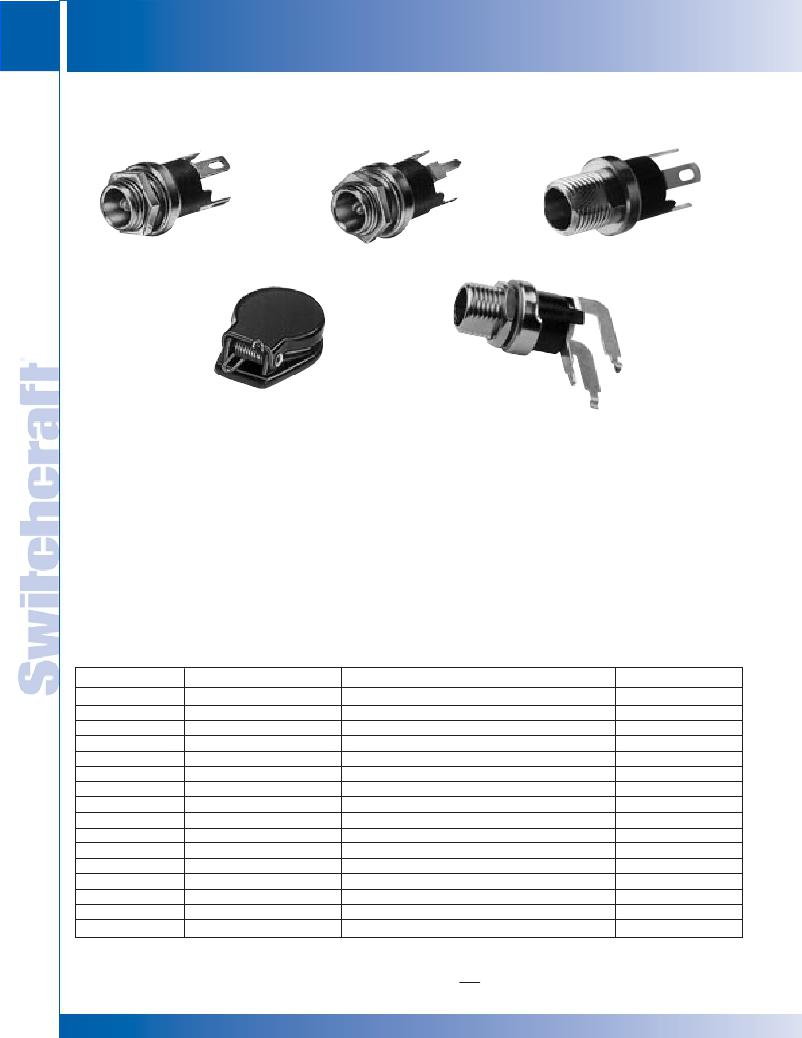

STRAIGHT MINIATURE POWER JACKS
712A
PC712A
L722A
2C1072
FEATURES:
? Automatic switch over from AC to DC
permitted by sleeve shunt spring.
? Split center pin shaped to hold mating plug firmly.
? Bushing length available as 0.219" or extended
0.319" to permit use in thicker panels.
? Non-turn mounting possible using standard
“D” shape bushing.
? Insulated mounting hardware available.
? Right angle versions offer “kinked” PC
terminals for added board retention.
MATERIALS:
Housing: Thermoplastic
Bushing: Plated copper alloy
Terminals: Plated copper alloy
L712RA
Insulators: Rigid Plastic
Hardware: Supplied with one P2439 nickel plated copper
alloy hex nut, and one P2441 nickel plated steel flat washer
ELECTRICAL:
Current Rating: 5A, 12V DC resistive
Contact Resistance: 0.01 Ohms max. (initial),
0.02 Ohms max. (after humidity, durability exposure),
0.10 Ohms max. (after salt spray)
Insulation Resistance: 10,000 Mohms min. (initial),
1,000 Mohms min. (after humidity, durability exposure)
Dielectric Withstanding Voltage: 500 VAC max.
MECHANICAL:
Lifecycles: 10,000 cycles min.
Part Number
712A
712RA
L712A
L712RA
PC712A
PCL712A
722A
722RA
L722A
L722RA
PC722A
PCL722A
732A
732RA
PC732A
2C1072
Pin Size*
0.100"/2.5mm
0.100"/2.5mm
0.100"/2.5mm
0.100"/2.5mm
0.100"/2.5mm
0.100"/2.5mm
0.080"/2.0mm
0.080"/2.0mm
0.080"/2.0mm
0.080"/2.0mm
0.080"/2.0mm
0.080"/2.0mm
0.050"/1.3mm
0.050"/1.3mm
0.050"/1.3mm
Description
Solder lugs
Right angle PC terminals
Solder lugs, long bushing
Right angle PC terminals, long bushing
Straight PC terminals
Straight PC terminals, long bushing
Solder lugs
Right angle PC terminals, long bushing
Solder lugs, long bushing
Right angle PC terminals, long bushing
Straight PC terminals
Straight PC terminals, long bushing
Solder lugs
Right angle PC terminals
Straight PC terminals
Jack covers for 712A and 722A
Typical Mating Plug
760
760
761K
761K
760
761K
S760
S760
S761K
S761K
S760
S761K
860
860
860
Note: For insulated mounting order P2442 phenolic flat washer and S4263 swedged fiber washer.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
